Schindelhauer Arthur VI/IX (uz pasūtījumu)
Arthur VI/IX – The Avant-Gardist
Best technologies united
Fully integrated electric drive, gearbox from the automotive industry and carbon fibre belt drive: With Arthur VI/IX you experience the most advanced electrification of the classic Schindelhauer bicycle.
Tailwind at the push of a button
The inconspicuous 250 watt motor integrated in the rear wheel hub and the 250Wh battery placed in the down tube guarantee you enduring riding pleasure thanks to reliable components from MAHLE. Control and individual riding profiles are easily accessible at the touch of a button on the frame or via app.
Shift like in a sports car
Get completely agile and flexible on the road, as for the first time Arthur comes up with a Pinion C-line transmission unit, that lets you choose between 6 or 9 gears. Developed by former Porsche engineers, you can jump through gear changes precisely, regardless of whether you start at a traffic light or while riding.
Maintenance-free. Whisper quiet. Clean.
The Gates Carbon Drive belt allows you to cover three to four times as many kilometres compared to a chain - with the same efficiency, but less maintenance. Oil and grease is a thing of the past, as are dirty trouser legs. Just enjoy the silent ride.
Prepared for every situation
See and be seen: with Arthur you can rely on it even in the dark. The German StVZO-compliant lighting system impresses with its uncompromising integration in the handlebars and seat post. You are perfectly protected against moisture and dirt thanks to the Curana mudguards fitted as standard. A luggage rack is optionally available.
- MAHLE ebikemotion 250-Watt motor
- electric support up to 25 km/h
- integrated 250Wh-battery
- 6- or 9-speed Pinion C-Line drive
- integrated LightSKIN lighting in handlebar and seatpost (German StVZO-compliant)
- motor and lighting control at the touch of a button on the frame or via app
- Gates Carbon Drive CDX belt
- Curana CLite mudguards
- weight: 15.7 kg (size M)
size recommendation
frame size | S 53 |
M 57 |
L 61 |
---|---|---|---|
body height | 167-177 | 177-187 | 187-200 |
inseam length | 80-84 | 84-88 | 88-95 |
Feature list
frame | Aluminium (AL6061-T6), triple butted aero tubing, forged bottom bracket shell, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, integrated seat post clamp, smooth welded, internal cable routing |
fork | Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes |
headset | Acros - ICR 1,5'' |
motor | Mahle-ebikemotion – Motor HUB Drive M1, power: 250 W, torque: 40 Nm, max. support up to 25 km/h |
battery | Mahle-ebikemotion – intube battery, energy: 250 Wh |
display | Mahle-ebikemotion – iWoc ONE with Bluetooth and ANT+ |
power transmission | Gates Carbon Drive CDX, front 39T, rear 34T/28T, belt 118T/115T |
gear shiftt | Pinion C-Line gear box 6-/9-speed (XR) |
bottom brackett | Pinion |
crank set | Pinion |
pedals | Schindelhauer – Urban Pedal, aluminium, CNC machined |
stem | Satori – Stealth, aluminium |
handlebar | LightSKIN WIEN – handlebar integrated LED-front-light |
saddle | Brooks – B17 (chrome rails) |
seatpost | LightSKIN – seat post integrated LED-rear-light |

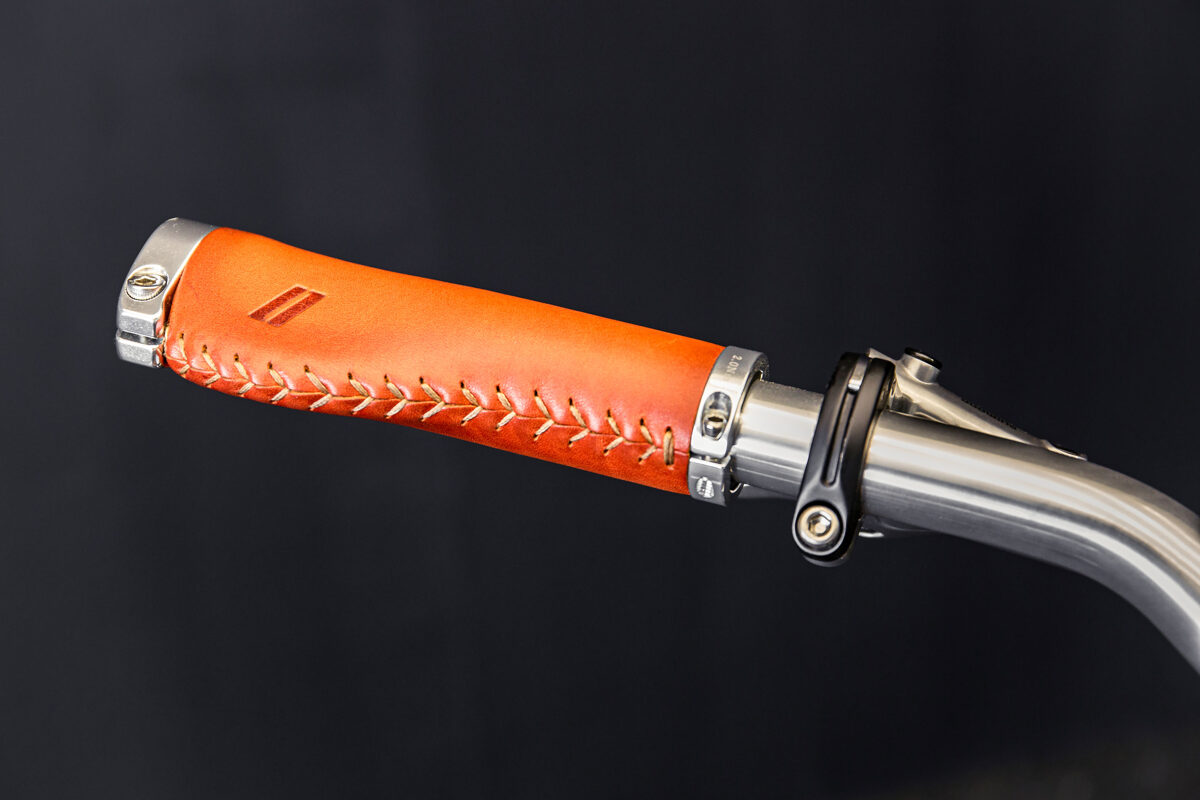

grips | Schindelhauer – ergo leather grips |
wheels | Schindelhauer – high flange front hub disc, ebikemotion motor HUB Drive M1, Alexrims – CXD26 rims with eyelets, Sapim – Race spokes, 3-cross and 1-cross laced |
brakes | Shimano - Alfine, disc brakes (hydraulic), 160 mm |
tyres | Continental – GP Urban Classic 35-622 |
weight | 15.7kg / 15.9 kg (size M) |
max. total weight | 130 kg (bike + rider + luggage) |
mudguards | Curana - CLite |
pannier rack | rear pannier rack mounting possible |
lighting | LightSKIN – handlebar integrated LED-front-light, seat post integrated LED-rear-light |
additional features | side stand mounting possible mounting of bottle cage or lock possible |
