Schindelhauer Emil (uz pasūtījumu)
Emil VI/IX
The electrified all-rounder
Comfortable, functional and with a reduced design language - Emil VI/IX is a fully equipped e-bike with all the advantages of an all-rounder. The inconspicuous 250-watt motor integrated in the rear hub and the 250Wh battery placed in the down tube offer enduring riding fun thanks to reliable components from Mahle. Control and individual riding profiles are easily accessible at the touch of a button on the frame or via app.
Fully loaded
Emil's urge to move can be optimally transferred to the road by means of the Pinion sequential gearbox with a choice of 6 or 9 gears. Developed by former Porsche engineers, even precise gear changes are possible, whether stationary or on the move. Another highlight is the frame-mounted front rack with clever tensioning strap system. Even larger loads can be transported safely and without affecting the handling. The LightSKIN Ultra-Mini-Light U2E, the world's smallest StVZO bicycle front light, integrated on the aluminium profile mudguard ensures the best visibility at night.
Relaxed in everyday life
Thanks to the adapted Schindelhauer frame geometry with longer head tube and shorter stem, Emil has a comfortable riding position. Cobblestone roads and rough park paths become a new favourite shortcut thanks to the large-volume tyres. With the Gates Carbon Drive toothed belt, three to four times the mileage is possible than with a chain - with the same efficiency, but less maintenance and noise. Oiling and greasing are as much a thing of the past as dirty trouser legs.
- MAHLE ebikemotion 250-Watt motor
- electric support up to 25 km/h
- integrated 250Wh-battery
- 6- or 9-speed Pinion C-Line drive
- LightSKIN Ultra-Mini-Light U2E (German StVZO-compliant)

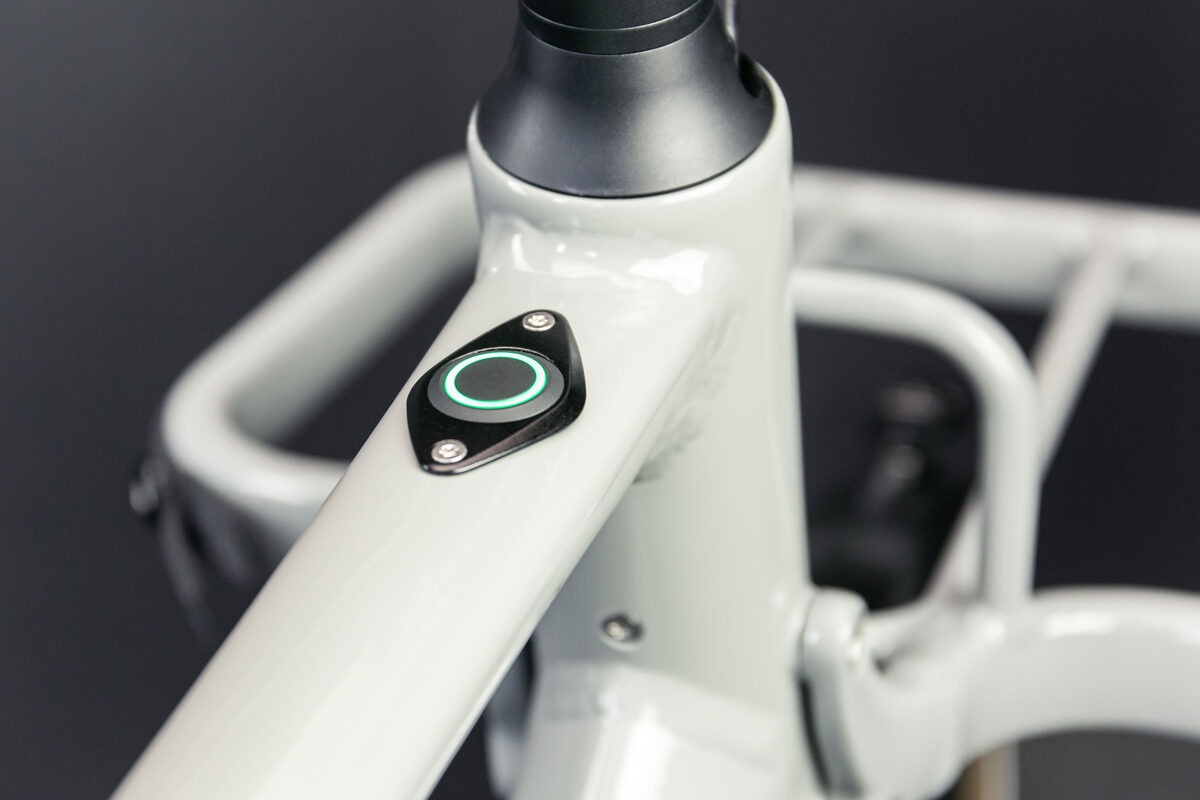

- motor and lighting control at the touch of a button on the frame or via app
- Gates Carbon Drive CDX belt
- built-in front rack
size recommendation
frame size | S 45 |
M 50 |
L 55 |
---|---|---|---|
body height | 168-177 | 177-186 | 186-200 |
inseam length | 77-82 | 83-88 | 89-96 |
Feature list
frame | Aluminium (AL6061-T6), triple butted aero tubing, forged PINION bracket, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, points for frame mounted front rack, smooth welded, internal cable routing |
fork | Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes |
headset | Acros - ICR 1,5'' |
motor | Mahle-ebikemotion – Motor HUB Drive M1, power: 250 W, torque: 40 Nm, max. support up to 25 km/h |
battery | Mahle-ebikemotion – intube battery, energy: 250 Wh |
display | Mahle-ebikemotion – iWoc ONE with Bluetooth and ANT+ |
power transmission | Gates Carbon Drive CDX, front 39T, rear 34T/28T, belt 118T/115T |
gear shiftt | Pinion C-Line gear box 6-/9-speed (XR) |
bottom brackett | Pinion |
crank set | Pinion |
pedals | VP – Nylon, with grip tape |
stem | Satori – Stealth, aluminium |
handlebar | Schindelhauer - CITY, aluminium |
saddle | Schindelhauer |
seatpost | Schindelhauer |
grips | Schindelhauer |
wheels | Schindelhauer – high flange front hub disc, ebikemotion motor HUB Drive M1, Alexrims – DP23 27,5“ rims, Sapim – spokes, 3-cross and 1-cross laced |
brakes | Shimano – MT200 disc brakes (hydraulic) 160 mm |
tyres | WTB – Horizon 47-584, with reflex stripes |
weight | 18.3 kg (6-speed)/18.6 kg (9-speed) |
max. total weight | 130 kg (bike + rider + luggage) |
mudguards | Curana – Apollo (extrusion profile mudguards) |
pannier rack | Schindelhauer – aluminium, frame mounted, with VarioStrap system, ready for Ortlieb Rack-Lock |
lighting | LightSKIN Ultra-Mini-Light U2E front and ILU jr. rear |
additional features | kickstand mounting of bottle cage or lock possible, frame mounting possible |
